CPC產品 桶/分裝連接器 穿刺密封型分配系統Puncture Seal coupling
穿刺密封型Puncture Seal coupling
1/4" 穿刺密封型分配系統為箱中袋（BIB）或其它軟包裝提供了一種清潔、安全的液體輸送方式。系統由一個密封封帽和一個快速接頭母座組成。封蓋帶有正螺紋或者嵌入式38mm瓶頸口。連接時，穿刺密封接頭母座自動穿過封蓋上的密封膜。當更換新容器時，只需松開CPC指鎖按鈕以斷開系統，然后將穿刺密封接頭母座連接到新容器上即可。
功能與效益
Puncture Seal coupling
Easily breaks the Puncture Seal
membrane
Polypropylene and polyethylene materials
Greater chemical resistance
Puncture Seal membrane
Eliminates shipping caps and o-rings
Colder thumb latch
One-hand connection and disconnection
產品規格
Pressure: Vacuum to 120 psi
Temperature: 32°F to 160°F continuous, 0°C to 71°C continuous
Materials:
Main components and valves: Polypropylene
38mm closure: Polyethylene (LDPE)
Thumb latch: Stainless steel
Valve spring: 316 Stainless steel
External spring and pin: Stainless steel
O-rings:
EPDM
Closure size: SP-400 38mm
NOTE: Contact Colder for pressure and temperature ratings on closure cap.
Cv值
straight-through Cv~ .95 (13.7)
single shut-off Cv~ .75 (10.8)

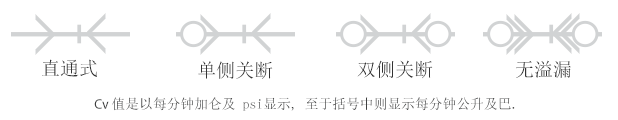

Legend
Legend
產品
Bag Closures
 |
 |
 |
 |
496200
Puncture Seal Bag Closure (PSC) |
PSC38MM
38mm Thread On Puncture Seal Cap - NSF |
27700
3/8 Hose Barb Non-Valved In-Line Coupling Body (PS1700612 NSF) |
PS1700412
1/4 Hose Barb Non-Valved In-Line Coupling Body - NSF |
|
|
|
|
PS1700612
3/8 Hose Barb Non-Valved In-Line Coupling Body - NSF |
PSD1700412
1/4 Hose Barb Valved In-Line Coupling Body - NSF |
PSD1700612
3/8 Hose Barb Valved In-Line Coupling Body - NSF |
|
Puncture Seal Bag Closure (PSC)
496200
Puncture Seal Bag Closure (PSC)
38mm Thread On Puncture Seal Cap - NSF
PSC38MM
38mm Thread On Puncture Seal Cap - NSF
Bodies
3/8 Hose Barb Non-Valved In-Line Coupling Body (PS1700612 NSF)
27700
3/8 Hose Barb Non-Valved In-Line Coupling Body (PS1700612 NSF)
1/4 Hose Barb Non-Valved In-Line Coupling Body - NSF
PS1700412
1/4 Hose Barb Non-Valved In-Line Coupling Body - NSF
3/8 Hose Barb Non-Valved In-Line Coupling Body - NSF
PS1700612
3/8 Hose Barb Non-Valved In-Line Coupling Body - NSF
1/4 Hose Barb Valved In-Line Coupling Body - NSF
PSD1700412
1/4 Hose Barb Valved In-Line Coupling Body - NSF
3/8 Hose Barb Valved In-Line Coupling Body - NSF
PSD1700612
3/8 Hose Barb Valved In-Line Coupling Body - NSF
|
