CPC HFC39 系列無菌斷開接頭Aseptic Disconnect HFC39 Connections
CPC HFC39 aseptic disconnect couplings
HFC39 Series couplings
CPC HFC39 無菌斷開接頭通過斷開阻止外部有機體進入流體培養基，可以不用卡盤和試管焊接 ，自動關閉閥門關閉流體路徑以保護重要的培養基，簡單易用的指按閂設計提供安全、防泄漏的連接，確保用一只手即可斷開。HFC39 Series couplings provide aseptic disconnect functionality. Automatic shutoff valves close off the flow path at disconnection, protecting valuable media while also eliminating the need for pinch clamps and tube welders. An easy-to-use thumb latch design provides a secure, leak-free connection as well as enabling one-handed disconnects.

特點 優點
自動關閉閥門
對預滅菌系統可靠的無菌斷開
可聽到" 咔噠" 響聲
提供安全連接的保證
輕量
易于與單次使用組件集成
無BSE/TSE的材料 符合ADCF要求
產品規格
規格
壓力：真空至125psi，8.62bar
溫度：-40oF到280oF（-40oC到138oC）
材料：主要部件：聚砜樹脂（淡琥珀色），
USP VI 等級認證, ADCF
O型圈：硅樹脂（透明），鉑金固化，USP VI
等級認證, ADCF
彈簧：316不銹鋼
滅菌：
伽瑪輻射：大達50k Gy伽瑪輻射, 可于接
頭連接或斷開時滅菌
高壓蒸汽滅菌器：大達270oF（132oC）
持續60 分鐘，對未連接單元大25 次重復
和對連接單元多1次重復
管道尺寸：1/4"，3/8"，1/2"內徑
6.4mm，9.5mm，12.7mmn內徑

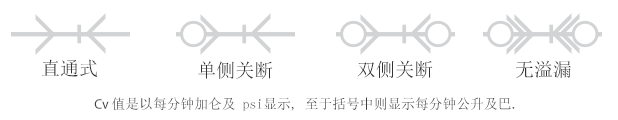

Cv值
single shut-off
 Cv ~ 1.6 (23.05) 大
 Cv ~ 1.5 (21.61) 大
CP Aseptic Disconnect HFC39 Connections
Source: CPC
HFC39 aseptic disconnect couplings prevent external organisms from entering into the media flow path upon disconnection. Automatic shutoff valves close off the flow path aseptically protecting valuable sterile media while also eliminating the need for pinch clamps and tube welders. The easy-to-use thumb latch design provides a secure, leak-free connection and enables one-hand disconnects. HFC39 connections are made of polysulfone materials with silicone seals and are ADCF, meet U.S.P. Class VI requirements and can be sterilized using autoclave or gamma.
Click Here To Download:
- Product Sheet: HFC39 Series Couplings — Medical-Grade Polysulfone, 1/4", 3/8", And 1/2" ID
- Catalog: Connection Solutions For BioPharmaceutical Processes
- Brochure: Application Overview for Biopharmaceutical Processes
- Catalog: Colder Products Company — Couplings And Fittings For Plastic Tubing
- HFC39 Series Product Validation Report
HFC39 aseptic disconnect couplings prevent external organisms from entering into the media flow path upon disconnection. Automatic shutoff valves close off the flow path aseptically protecting valuable sterile media and eliminate the need for pinch clamps and tube welders. The easy-to-use thumb latch design provides a secure, leak-free connection and enables one-hand disconnects. HFC39 connections are made of polysulfone material with silicone seals and are ADCF, meet U.S.P. Class VI requirements and are sterilizable using autoclave or gamma methods.
Features
Validated aseptic disconnect of pre-sterilized systems
Audible "click" when engaged
USP Class VI polysulfone material
Sterilizable by autoclave, Et0, e-beam, or gamma
Lightweight
Benefits
Stops flow and eliminates need for pinch clamps
Confidence of a secure connection
Physical strength, durability and an excellent replacement for stainless steel
Reusable and compatible with your existing processes
Removes extra weight from assemblies
Applications may include:
Bioprocessing
Laboratory tubing connections
Cell culture media transfer
Kidney dialysis equipment
Pharamceutical equipment
Diagnostic manufacturing
Click Here To Download:
- Product Sheet: HFC39 Series Couplings — Medical-Grade Polysulfone, 1/4", 3/8", And 1/2" ID
- Catalog: Connection Solutions For BioPharmaceutical Processes
- Brochure: Application Overview for Biopharmaceutical Processes
- Catalog: Colder Products Company — Couplings And Fittings For Plastic Tubing
- HFC39 Series Product Validation Report
HFC39 aseptic disconnect couplings產品Bodies

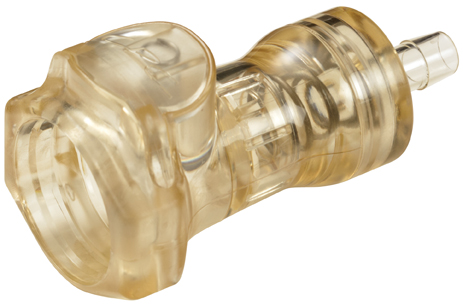

1/4 Hose Barb Valved In-Line Coupling Body
HFCD17439M
1/4 Hose Barb Valved In-Line Coupling Body
3/8 Hose Barb Valved In-Line Coupling Body
HFCD17639M
3/8 Hose Barb Valved In-Line Coupling Body
1/2 Hose Barb Valved In-Line Coupling Body
HFCD17839M
1/2 Hose Barb Valved In-Line Coupling Body
Caps & Plugs
Quick ViewSealing Plug HFC39
HFC30039M
Sealing Plug HFC39
HFC Cap
HFC312
HFC Cap
HFC Tethered Cap
HFC312L
HFC Tethered Cap
Sealing Cap HFC39
HFC32039
Sealing Cap HFC39
Inserts
1/4 Hose Barb Non-Valved In-Line Coupling Insert
HFC22439M
1/4 Hose Barb Non-Valved In-Line Coupling Insert
3/8 Hose Barb Non-Valved In-Line Coupling Insert
HFC22639M
3/8 Hose Barb Non-Valved In-Line Coupling Insert
1/2 Hose Barb Non-Valved In-Line Coupling Insert
HFC22839M
1/2 Hose Barb Non-Valved In-Line Coupling Insert

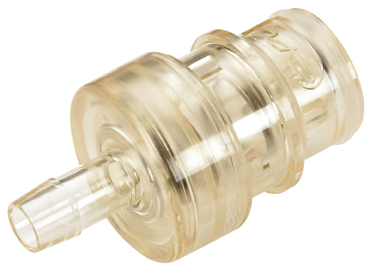

1/4 Hose Barb Valved In-Line Coupling Insert
HFCD22439M
1/4 Hose Barb Valved In-Line Coupling Insert
3/8 Hose Barb Valved In-Line Coupling Insert
HFCD22639M
3/8 Hose Barb Valved In-Line Coupling Insert
1/2 Hose Barb Valved In-Line Coupling Insert
HFCD22839M
1/2 Hose Barb Valved In-Line Coupling Insert
