CPC在太陽能系統液體冷卻電源逆變器的配套應用
Liquid Cooled Power Inverter - Solar Energy
太陽能和風力發電都在測試空冷功率反演的局限性，以至于液體冷卻正成為一種必要。為了消除巨大的熱負荷，LQ系列技術在各種清潔能源應用的高效熱管理中發揮了至關重要的作用。從標準目錄產品到全面設計的解決方案，CPC使產品適合您的特定應用。聯系您的RSM，標準產品不適合您的應用程序，他們可以確定CPC是否會為您創建自定義產品。Solar and wind power generation are testing the limits of air-cooled power inversion to the point that liquid cooling is becoming a necessity. In order to dissipate immense heat loads, LQ series technology has played a crucial role in efficient thermal management of various clean energy applications. From standard catalog offerings to fully engineered solutions, CPC makes products to best fit your specific application. Contact your RSM a standard product does not fit your application and they can determine if CPC would create a custom product for you.

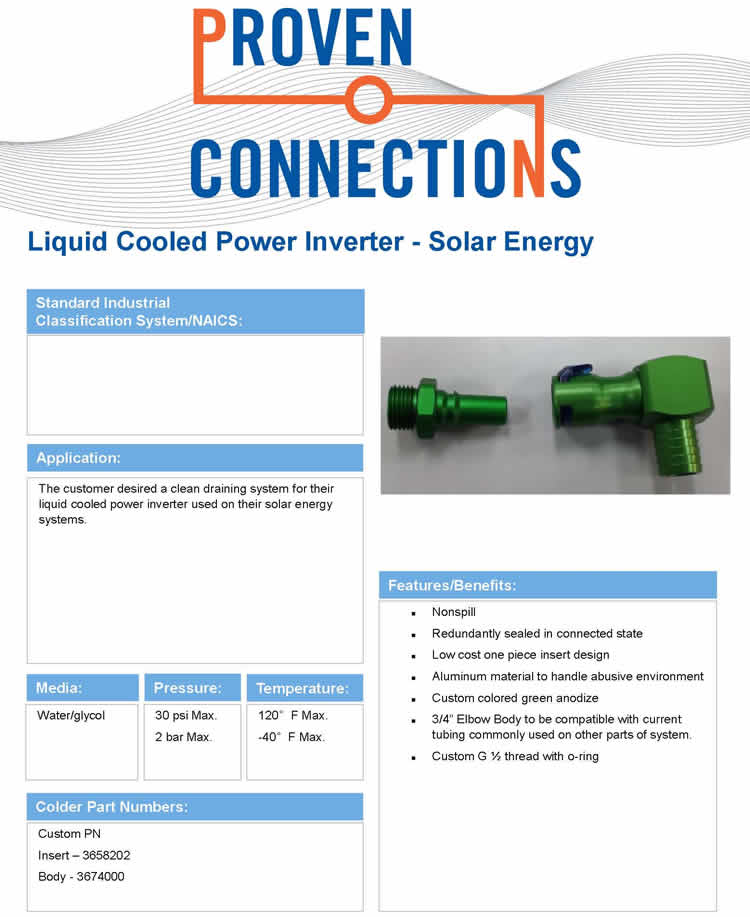

請參閱鏈接以了解我們的綠色定制示例的經驗證的連接！See the link for our Proven Connections for an example of our green custom!
Liquid Cooled Power Inverter - Solar Energy
太陽能液冷電源逆變器
客戶需要一個清潔的排水系統，用于他們的太陽能系統的液體冷卻電源逆變器。The customer desired a clean draining system for their liquid cooled power inverter used on their solar energy systems.
Application:
Standard Industrial
Classification System/NAICS:
? Nonspill
? Redundantly sealed in connected state
? Low cost one piece insert design
? Aluminum material to handle abusive environment
? Custom colored green anodize
? 3/4” Elbow Body to be compatible with current
tubing commonly used on other parts of system.
? Custom G ? thread with o-ring
Features/Benefits:
120°F Max.
-40°F Max.
30 psi Max.
2 bar Max.
Water/glycol
Media: Pressure: Temperature:
Colder Part Numbers:
Custom PN
Insert – 3658202
Body - 3674000
|
3180038393
