NS2 快速接頭是印刷和墨水管理、分析儀器、電子冷卻和許多其他應用
NS2 Couplings
APRIL 15, 2009 BY COUPLING
NS2 系列防溢流接頭可實現快速、安全且幾乎無泄漏的流體管路連接。對于印刷和墨水管理、分析儀器、電子冷卻和其他應用，快速接頭傳輸大量流體，但它們在物理上占用的空間很小。快速接頭使用扭轉連接鎖定機制。雙面無泄漏截止閥增加了安全性和便利性。接頭提供軟管倒鉤端接，可用于管道1/8英寸（3.2 毫米）和 1/4英寸（6.4 毫米）內徑。配置包括管螺紋、直插式和面板安裝。
The NS2 Series non-spill couplings create fast, safe, and virtually leak-free fluid line connections. For printing and ink management, analytical instrumentation, electronic cooling, and other applications, the couplings transfer large amounts of fluid, yet they physically take up little space. The couplings’ use a twist-to-connect locking mechanism.
CPC NS2 SERIES - POLYPROPYLENE QUICK CONNECT/DISCONNECT
NS2 Series non-spill couplings PDF Catalog
NS2 快速接頭在小尺寸、安全和經濟的情況下提供經濟高效、高流量的流體管路傳輸
明尼蘇達州圣保羅 - 2007 年 1 月 15 日 - Colder Products Company 的新型緊湊型、無溢出快速斷開快速接頭為用戶提供具有快速、安全且幾乎無泄漏的流體管路連接。正在申請專利的 NS2 快速接頭是印刷和墨水管理、分析儀器、電子冷卻和許多其他應用的絕佳選擇，可在較小的占地面積內提供高流量的流體傳輸。
Colder 工業市場業務部經理 Andy Hass 表示：“這款 NS2 系列快速斷開接頭建立在我們行業領先的防溢閥平臺之上，體現了我們對易于使用的高質量接頭的承諾和持續投資。”產品公司。“對于需要安全輸送流體的應用，NS2 提供了一種簡單的扭轉連接鎖定機構和雙面防溢截止閥，以增加安全性和便利性。”
NS2 滿足了對更小、更具成本效益的工業快速接頭的需求。較小的快速接頭可以替代較大的快速接頭，為用戶提供適用于各種快速接頭應用的低成本、節省空間的選擇。新的接頭還提供非常低的空氣夾雜物 - 連接時將空氣引入接頭 - 最大限度地減少污染物并減少清洗流體管線的需要。
Colder NS2 系列快速斷開接頭提供軟管倒鉤端接，可用于內徑為 1/8" (3.2mm) 和 1/4" (6.4mm) 的管道。配置包括管螺紋、直插式和面板安裝。無箍壓縮終端連接到 ?" OD (6.4mm) 和 0.17" ID (4.3mm) 半剛性管。壓力范圍從真空到 45 psi (3.1 bar)，工作溫度范圍從 32° F (0° C) 到 120° F (49° C)。
Double-sided non-spill shutoff valves add safety and convenience. The couplings offer hose barb terminations and are available for tubing in ? in. (3.2 mm) and ? in. (6.4 mm) ID. Configurations include pipe thread, in-line and panel mount. Colder Products Company
www.colder.com
Quick Disconnect Couplings offer leak-free connections.
CPC (Colder Products Company) Feb 07, 2007 Contact This Company Company Profile Company News Company Website Share:
Press Release Summary:
For applications that require safe transfer of fluids, NS2 Couplings offer twist-to-connect locking mechanism and double-sided non-spill shutoff valves. Units are available with hose barb terminations for tubing measuring 1/8 and ?? in. ID in pipe thread, in-line, and panel mount configurations. Operating at pressure ranges from vacuum to 45 psi and temperatures from 32-120?°F, couplings are suited for printing and ink management, analytical instrumentation, and electronic cooling.
Original Press Release:
Colder Products Company Introduces Its Smallest, Non-Spill Quick Disconnect Couplings
NS2 Couplings Deliver Cost-Efficient, High-Flow Fluid Line Transfer in a Small Footprint, Safely and Economically
St. Paul, MN - January 15, 2007 - A new line of compact, non-spill quick disconnect couplings from Colder Products Company provides users with fast, safe and virtually leak-free fluid line connections. An excellent choice for printing and ink management, analytical instrumentation, electronic cooling, and many other applications, the patent-pending NS2 couplings provide high-flow fluid transfer in a small footprint.
"This NS2 Series of quick disconnect couplings builds on our industry leading platform of non-spill valves and reflects our commitment and ongoing investment in easy-to-use, high quality couplings," said Andy Hass, business unit manager, industrial markets, Colder Products Company. "For applications that require the safe transfer of fluids, the NS2 offers an easy, twist-to-connect locking mechanism and double-sided non-spill shutoff valves for added safety and convenience."
The NS2 meets the need for smaller, more cost-effective industrial couplings. The smaller couplings can replace larger ones, offering users a low-cost, space-saving option for a wide variety of coupling applications. The new couplings also offer very low air inclusion - air induced into the coupling upon connection - minimizing contaminants and reducing the need to purge fluid lines.
Colder NS2 Series quick disconnect couplings offer hose barb terminations and are available for tubing in 1/8" (3.2mm) and 1/4 " (6.4mm) ID. Configurations include pipe thread, in-line and panel mount. The ferruless compression terminations connect to ?" OD (6.4mm) and 0.17" ID (4.3mm) semi-rigid tubing. Pressure ranges from vacuum to 45 psi (3.1 bar), and operating temperatures range from 32° F (0° C) to 120° F (49° C).
For more information about available options and order quantities, please contact the Colder Products Company inside sales department at 010-84282935
About Colder Products Company
Colder Products Company is a leading provider of quick disconnect couplings to industrial, life sciences, chemical, and packaging markets. For a free catalog CD or more information, contact: Colder Products Company, 1001 Westgate Drive, St. Paul, MN 55114. Phone: 651-645-0091. Toll-free: 800-444-2474. Fax: 651-645-5404. Web: www.colder.com.
CPC, Colder Products and Colder Products Company are registered trademarks

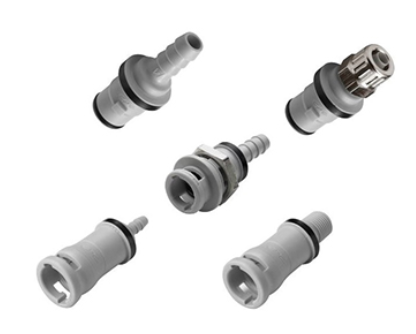

NS2 Series 1/8" Flow Dry Break, Quick Disconnect Coupling, Colder Products Company
# ITEM
NS2D100212 1/8" Male NPT Body - Valved EPDM Polypropylene
NS2D120412 1/4" OD Ferruless Poly-Tube Body - Panel Mount - Valved EPDM Polypropylene
NS2D130412 1/4" OD Ferruless Poly-Tube Body - Valved EPDM Polypropylene
NS2D160212 1/8" Hose Barb Body - Panel Mount - Valved EPDM Polypropylene
NS2D160412 1/4" Hose Barb Body - Panel Mount - Valved EPDM Polypropylene
NS2D170212 1/8" Hose Barb Body - Valved EPDM Polypropylene
NS2D170412 1/4" Hose Barb Body - Valved EPDM Polypropylene
NS2D200412 1/4" OD Ferruless Poly-Tube Insert - Valved EPDM Polypropylene
NS2D220212 1/8" Hose Barb Insert - Valved EPDM Polypropylene
NS2D220412 1/4" Hose Barb Insert - Valved EPDM Polypropylene
