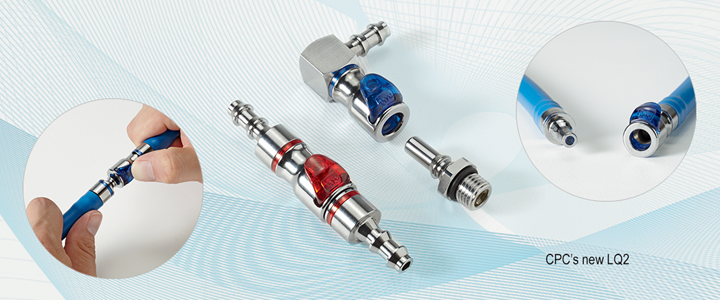

CPC LQ2 Series liquid cooling connectors Video

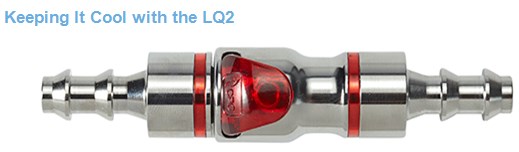

Liquid Cooling of Electronics with CPC’s LQ2 Connector
CPC LQ2 Series Connector系列快速接頭PDF Catalog
性能參數：
- Color-coded thumb latch
- Simple, intuitive one-handed operation with visual difference in cooling lines
- High flow capacity
- Cost-effective fluid handling system
- Redundant multilobed seals
- Protection against leakage and ability to withstand extended periods of connection
- Locking hose barb
- Quality connection with reinforced tubing used in liquid cooling applications
規格參數：
Pressure:Vacuum to 200 psi, 13.8 bar
Temperature:0°F to 240°F (-17°C to 115°C)
Maximum Flow at Disconnect:
1.00 gal/min at 0 – 100 psi
0.25 gal/min at 101 – 200 psi
Materials:
Main housing components:Chrome-plated brass
Valves and thumb latch: Polysulfone
Valve spring (wetted): Stainless steel
External spring: Stainless steel
Seals:EPDM
Color:
Chrome with Cool Blue or Warm Red
Tubing Sizes:
1/4 ID (6.4mm ID)
Lubricants:
Krytox? PFPE
LQ2 Series coupling Bodies母頭
|
|

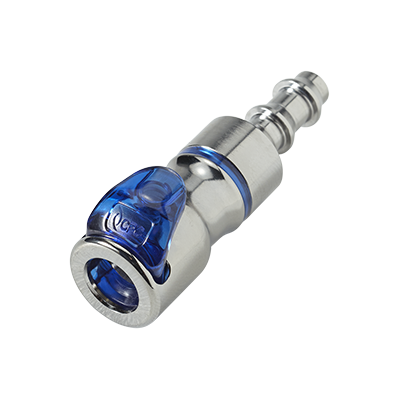

LQ2D1704LBLU
1/4" Locking Hose Barb Valved In-Line Liquid Cooling Coupling Body, Cool Blue |

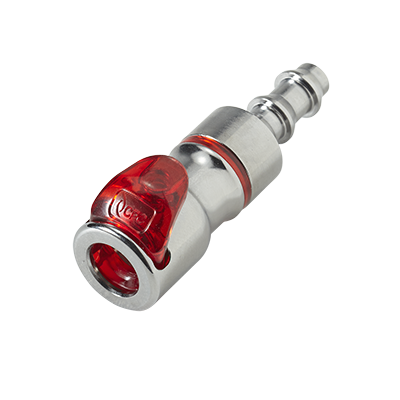

LQ2D1704LRED
1/4" Locking Hose Barb Valved In-Line Liquid Cooling Coupling Body, Warm Red |
|
|

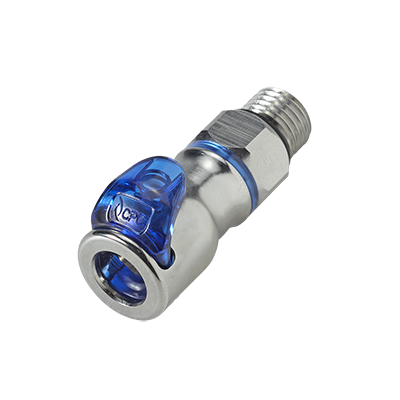

LQ2D3004BLU
1/4" SAE Valved In-Line Liquid Cooling Coupling Body, Cool Blue |

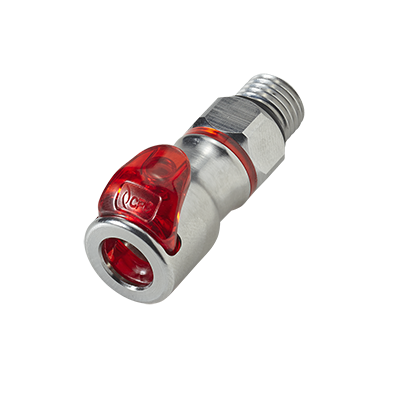

LQ2D3004RED
1/4" SAE Valved In-Line Liquid Cooling Coupling Body, Warm Red |
|
|

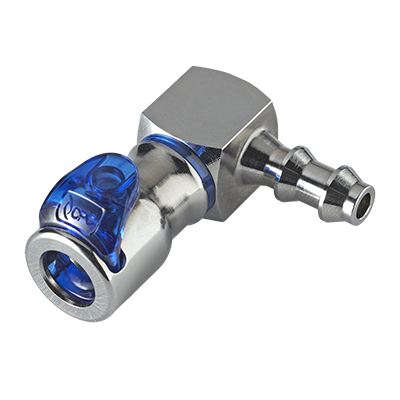

LQ2D3304LBLU
1/4" Locking Hose Barb Valved Elbow Liquid Cooling Coupling Body, Cool Blue |

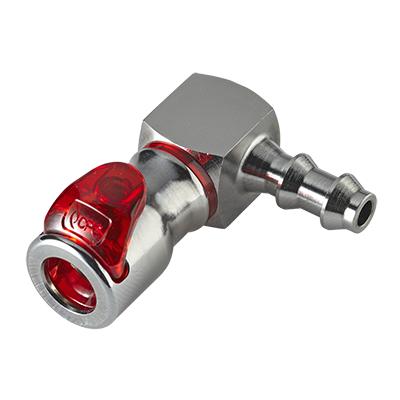

LQ2D3304LRED
1/4" Locking Hose Barb Valved Elbow Liquid Cooling Coupling Body, Warm Red |
LQ2 Series coupling Inserts公頭
|
|

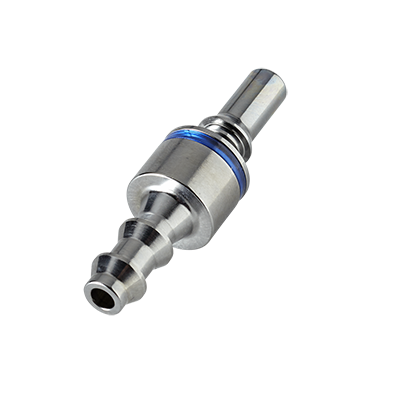

LQ2D2204LBLU
1/4" Locking Hose Barb Valved In-Line Liquid Cooling Coupling Insert, Cool Blue |

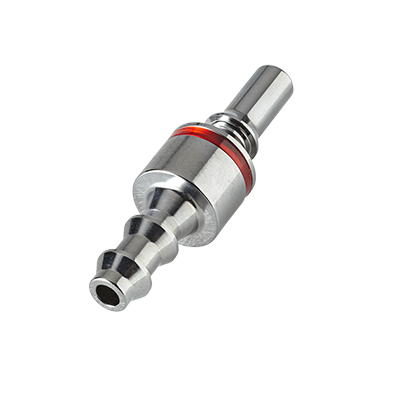

LQ2D2204LRED
1/4" Locking Hose Barb Valved In-Line Liquid Cooling Coupling Insert, Warm Red |
 |
 |

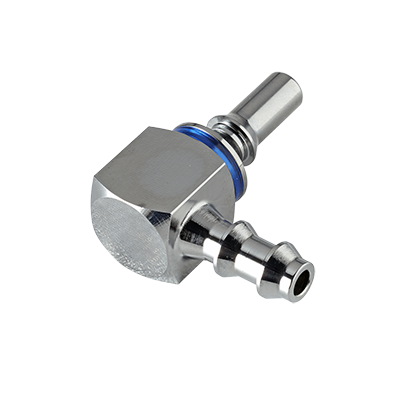

LQ2D2304LBLU
1/4" Locking Hose Barb Harb Valved Elbow Liquid Cooling Coupling Insert, Cool Blue |

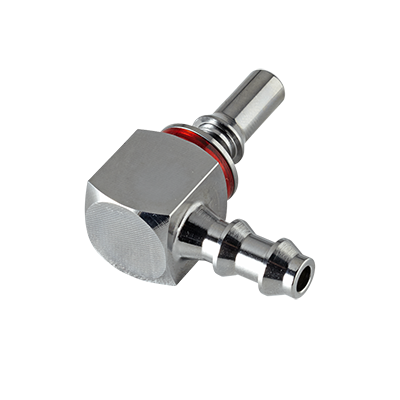

LQ2D2304LRED
1/4" Locking Hose Barb Harb Valved Elbow Liquid Cooling Coupling Insert, Warm Red |
 |
 |

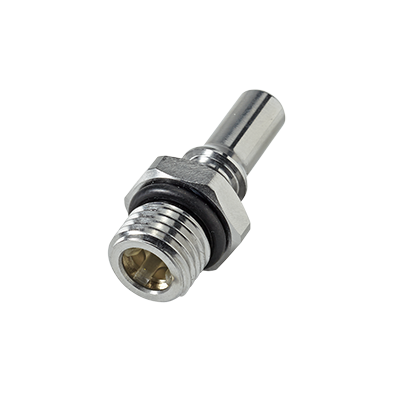

LQ2D4604BLU
1/4" SAE Valved Liquid Cooling Coupling Insert, Cool Blue |

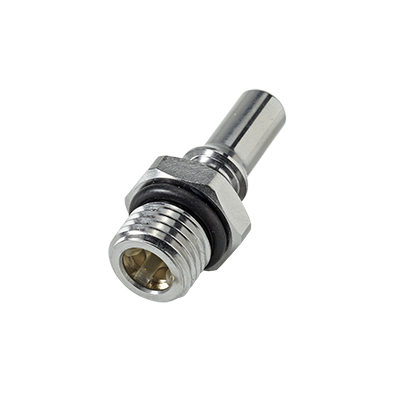

LQ2D4604RED
1/4" SAE Valved Liquid Cooling Coupling Insert, Warm Red |
- CPC LQ2 Thermal Management Award - Congratulations to the 2017 Thermal Management Product of the Year Winner
CPC (Colder Products Company) LQ2系列產品獲得2017熱管理年度獎
NEW PRODUCTS_新產品
Exciting additions to CPC’s product offering include:
- NS1 Series Connectors
- NS4 Series Connectors – Elbow
- LQ4 Series Connectors
- LQ6 Series Connectors
- BQ45GL Series Connectors
- Hybrid Connectors
- MPC / MPX Back-to-Back Insert Adapters
- Genderless AseptiQuik? G Connectors
- AseptiQuik? G STC Connectors
- Dual Port Couplings Added to CPC Quick Disconnect Products:DPC Series couplings
