混合型接頭系列
新型的混合型接頭消除了對多連接的需要，簡化了遠程工具和設備之間的用戶接口。特點是采用易于操作的扭鎖，一個簡單的動作即可將所有部分牢固地連接起來，技術人員可迅速更換需要電源、信號、空氣或液體組合的模塊化工具、輸送管或手動件。混合連接器采用干式斷開技術，目前對于液體和電子線路，設計師可以自信地指定一種連接器即可解決。流線型接口設計使設計工程師可根據要求調整產品。為了節省您寶貴的工程資源，請為您的特定應用選擇現貨供應的解決方案或定制型解決方案。Hybrid Connector from CPC eliminates the need for multiple connections and simplifies the user interface between remote tools and a device. Featuring an easy-to-use twist latch to securely connect everything in one simple motion, technicians can quickly change or replace modular tools, umbilicals or hand pieces that require a combination of power, signal, air or fluids.
Featuring dry-break technology, the Hybrid Connector allows designers to confidently specify a single connector for both fluids and electronics. The streamlined interface allows design engineers to adapt the product to their needs with many customization options available. Save your valuable engineering resources with this off-the-shelf, turnkey solution or a customized version for your specific application.
CPC Mini Hybrid Connector混合連接器視頻
Hybrid Connectors Video

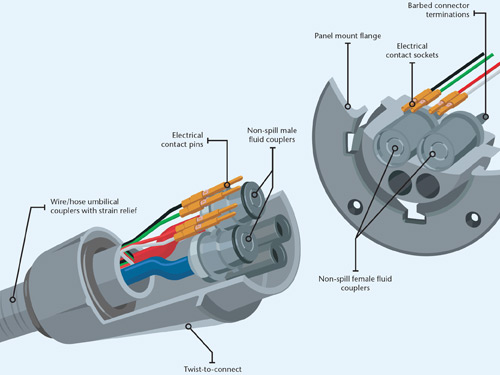

功能與效益
Single connection point for pneumatic, fluid, data and power connections between a device and its tool/hand piece
Increases safety and makes systems more user friendly
Non-spill shutoff valves with dry-break technology
Eliminate fluid drips upon disconnect and minimize air inclusion
Turnkey solution
Reduces multiple components
Off-the-shelf assembly
Minimizes engineering design and manufacturing effort
Custom options available
Flexibility to add additional fluid connector or elect contacts.
產品規格
Pressure: Vacuum to 45 psi, 3.1 bar
Temperature: 32°F to 120°F (0°C to 49°C)
Materials:
Non-wetted coupler components: Glass-filled polypropylene and acetal
Wetted coupler components: Glass-filled polypropylene
Springs: Stainless steel
Electrical contacts: Gold-plated brass
O-rings: EPDM
Tubing: Fluid tubing: polyurethane (PU)
Umbilical tubing: PVC
Color: Gray
Panel Terminations: Two 1/8" hose barbs on panel and four 20ga wires with 12" pigtail
Umbilical Terminations: 8' (2.44M) umbilical with two 1/8" (3.2mm) ID PU tubing and four 20ga wires with 3" (76.2mm) pigtail
Number of fluid lines: 2
Electrical Specifications:
Voltage: Up to 24VDC
Current: Up to 3 Amps
Wire gauge: 20AWG
Number of contacts: 4
Hybrid Connector

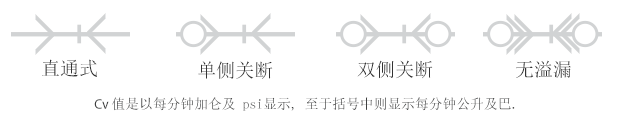

Cv值
non-spill
產品

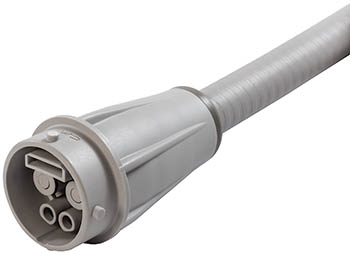

Polypropylene Hybrid Connector, 1/8" ID (3.2mm) Hose
HQC17002
Polypropylene Hybrid Connector, 1/8" ID (3.2mm) Hose
Polypropylene Hybrid Connector, 1/8" ID (3.2mm) Panel Mount
HQC42001
Polypropylene Hybrid Connector, 1/8" ID (3.2mm) Panel Mount
|
3180038393
