CPC桶/分裝連接器 DrumQuik PUR (High Purity Cleanroom)
CPC DrumQuik PUR High Purity Cleanroom
無論您是使用簡便油桶，桶或中型散裝容器（IBCs）， 我們的DrumQuik分配系統適合幾乎任何容器使用，“封閉”地提取容器中的化學品或食品為主的液體。備有不同尺寸和材料選擇的汲取管系統，我們的解決方案有效減少危險品暴露，同時保護您的流體本身免受污染。安全地連接化學品。不管您的應用程序條件為何，安全性必然是您的優先考慮。當涉及到化學品的處理，沒有其他公司比CPC更認真地研發快速斷開管件、密封、接頭和化學分配系統， 以保護工人的作業安全，防止化學品泄漏和溢出污染環境。我們的耐化學腐蝕的產品滿足各種應用，如半導體、織物和陶瓷染料、調味劑、液晶顯示器、太陽能電池、醫藥制造和化學品管理等等。DrumQuik PUR is changing the world of chemical management with its unique closed-system design. The DrumQuik dispensing system for smarter chemical management provides safe, easy and economical extraction of chemicals from drums, jerricans and IBC totes—while reducing spills, containing hazardous fumes and enhancing workplace safety.
美國CPC塑料快速接頭Drumquik系列分裝接頭 DrumQuik PUR密閉式分配連接系統
DrumQuik PRO /DrumQuik PUR DrumQuik_Dispensing_Systems分裝系統
Colder DrumQuik Drum Dispensing Sytsem
CPC DrumQuik桶/分裝連接器PDF Catalog
功能與效益
Quick connect/disconnect
Faster container change-outs
Automatic shutoff valve
Stops flow when disconnected
Disposable container insert
Reduces chemical exposure and messy handlig
產品規格
壓力
Uncoupled: Vacuum to 45 psig (3.1 bar)
Coupled: Vacuum to drum rating
溫度
Drum Insert: -20°to 120°F (-29°to 49°C)
Coupler: PVDF, 0° to 120°F (-18° to 49°C)
材料
Drum insert & dip-tube: Virgin polyethylene (HDPE)
Shipping plug: Virgin polyethylene (HDPE), FKM Coupler: PVDF
Spring (coupler only): 316 stainless steel, Hastelloy C, virgin PEEK UHP, PPS or Teflon encapsulated 316 stainless steel (TESS)
密封材料
Coupler seals: EPDM, FKM, Simriz UHP FFKM Perfluoroelastomer
Bung seal: Polyolefin, EPDM, FKM
Shipping plug seal: EPDM, FKM
Torque specifications
2" Buttress - 20ft-lbs (27 N m)
BCS 56x4 - 20ft-lbs (27 N m)
2" NPS (plastic drum) - 20ft-lbs (27 N m)
2" NPS (steel drum) - 15ft-lbs (20 N m)
Shipping plug - hand tight
Note: The torque specifications listed above are general recommendations which may need to be adjusted + or – depending on specific application
產品Dip-Tubes
 |
 |
 |
 |
| DQPURDT0410 Dip-tube 13.0" or 330mm long for 5 gal/25L Jerry Cans |
DQPURDT0985 Dip-tube 35.5" or 905mm long for 55gal/200L Drums
|
DQPURDT1070 Dip-tube 39.0" or 990mm long for 275gal/1040L IBCs |
DQPURDT1274 Dip-tube 47.0" or 1194mm long for 330gal/1250L IBCs |
Drum Inserts
 |
 |
 |
|
| DQPUR202BUT 2" Drum Insert with American Buttress Thread and EPDM O-Rings (North American Plastic Drums) |
DQPUR202BUT202 2" Drum Insert with American Buttress Thread and FKM (Viton) O-Rings (North American Plastic Drums) |
DQPUR2BUT0985 Drum Insert Assembly 985mm, 2" American Buttress, POE Bung Seal, EPDM Shipping Plug |
DQPUR2BUT0985202 Drum Insert Assembly 985mm, 2" American Buttress, POE Bung Seal, EPDM Shipping Plug |
 |
|
|
|
| DQPUR2BUT1274 Drum Insert Assembly 1274mm, 2" American Buttress, POE Bung Seal, EPDM Shipping Plug Seal |
|
|
|
Fittings, Valves and Accessories
 |
 |
 |
 |
| DQPURDCN0812 1/2" Flare X 3/4" Flare Double Containment Nut |
DQPURDCN1216 3/4" Flare X 1" Flare Double Containment Nut |
DQPURDCPM0812 1/2" Flare X 3/4" Flare Panel Mount Double Containment Nut |
DQPURDCPM1216 3/4" Flare X 1" Flare Panel Mount Double Containment Nut
|
|
 |
 |
|
| DQPURFI1216 3/4" Female Flare x 1" Male Flare PFA Flame Increaser
|
DQPURFR1208 3/4" Female X 1/2" PFA Male Flare Reducer |
DQPURFT08 Flaring Tool for 1/2" Tubing
|
DQPURFT12 Flaring Tool for 3/4" Tubing
|
|
 |
|
|
| DQPURMC0404 1/4" Flare X 1/4" NPT PVDF Male Connector
|
DQPURMC0604 3/8" Flare X 1/4" NPT PVDF Male Connector |
DQPURMC0804 1/2" Flare X 1/4" NPT PVDF Male Connector
|
DQPURSE0808 1/2" Female Flare X 1/2" Male Flare PFA Sweep Elbow Coupler |
 |
|
|
|
| DQPURSE1212 3/4" Female Flare X 3/4" Male Flare PFA Sweep Elbow Coupler
|
DQPURSP Polyethylene Shipping Plug with EPDM Seal |
DQPURSP202 Polyethylene Shipping Plug with FKM (Viton) O-Ring |
|
O-Rings and Seals
|
|
|
|
| DQPURCPSEALFKM FKM (Viton) O-Ring Kit for DrumQuik PUR Coupler |
DQPURCPSEALSMZ FFKM (Simriz) O-Ring Kit for DrumQuik PUR Coupler |
DQPURDISEALFEP FEP Encapsulated Silicone Bung Seal for Drum Insert |
DQPURDISEALPOE POE Coupling Insert Seal
|
Other
 |
 |
 |
 |
| DQPUR120112 3/4" Flare Coupler with FKM (Viton) O-Ring and (PEEK) Spring |
DQPUR120112203 3/4" Flare Coupler with FFKM (Simriz) O-Ring and (PEEK) Spring |
DQPUR120112208 3/4" Flare Coupler with FKM (Viton) O-Ring and Polyphenylene Sulfide Spring |
DQPUR120112209 3/4" Flare Coupler with FFKM (Simriz) O-Ring and Polyphenylene Sulfide Spring |
 |
 |
|
|
| DQPUR120112210 3/4 Flare Coupler with FKM (Viton) O-Ring and PTFE Encapsulated 316 Stainless Steel Spring |
DQPUR120112211 3/4 Flare Coupler with FFKM (Simriz) O-Ring, FKM Vent Seal, and PTFE Encapsulated 316 Stainless Steel Spring |
|
|
Sample Kits
|
|
| DQPURSAMP202 Sample Kit with 1 DQPUR120112 (FKM (Viton) and PEEK) Coupler and 1 Assembled Dip-tube (DQPUR2BUT0985202) |
DQPURSAMP209 Sample Kit with 1 DQPUR120112 (PPS and SimrizSpring) Coupler and 1 Assembled Dip-tube (DQPUR2BUT0985202) |

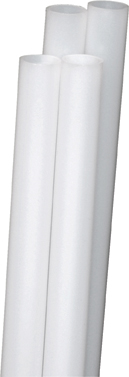

Dip-tube 13.0" or 330mm long for 5 gal/25L Jerry Cans
DQPURDT0410
Dip-tube 13.0" or 330mm long for 5 gal/25L Jerry Cans
Dip-tube 35.5" or 905mm long for 55gal/200L Drums
DQPURDT0985
Dip-tube 35.5" or 905mm long for 55gal/200L Drums
Dip-tube 39.0" or 990mm long for 275gal/1040L IBCs
DQPURDT1070
Dip-tube 39.0" or 990mm long for 275gal/1040L IBCs
Dip-tube 47.0" or 1194mm long for 330gal/1250L IBCs
DQPURDT1274
Dip-tube 47.0" or 1194mm long for 330gal/1250L IBCs
Drum Inserts

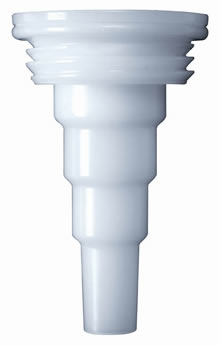

2" Drum Insert with American Buttress Thread and EPDM O-Rings (North American Plastic Drums)
DQPUR202BUT
2" Drum Insert with American Buttress Thread and EPDM O-Rings (North American Plastic Drums)
2" Drum Insert with American Buttress Thread and FKM (Viton) O-Rings (North American Plastic Drums)
DQPUR202BUT202
2" Drum Insert with American Buttress Thread and FKM (Viton) O-Rings (North American Plastic Drums)

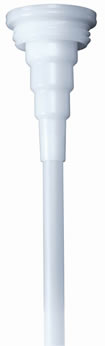

Drum Insert Assembly 985mm, 2" American Buttress, POE Bung Seal, EPDM Shipping Plug
DQPUR2BUT0985
Drum Insert Assembly 985mm, 2" American Buttress, POE Bung Seal, EPDM Shipping Plug
Drum Insert Assembly 985mm, 2" American Buttress, POE Bung Seal, EPDM Shipping Plug
DQPUR2BUT0985202
Drum Insert Assembly 985mm, 2" American Buttress, POE Bung Seal, EPDM Shipping Plug
Drum Insert Assembly 1274mm, 2" American Buttress, POE Bung Seal, EPDM Shipping Plug Seal
DQPUR2BUT1274
Drum Insert Assembly 1274mm, 2" American Buttress, POE Bung Seal, EPDM Shipping Plug Seal
Fittings, Valves and Accessories
1/2" Flare X 3/4" Flare Double Containment Nut
DQPURDCN0812
1/2" Flare X 3/4" Flare Double Containment Nut
3/4" Flare X 1" Flare Double Containment Nut
DQPURDCN1216
3/4" Flare X 1" Flare Double Containment Nut
1/2" Flare X 3/4" Flare Panel Mount Double Containment Nut
DQPURDCPM0812
1/2" Flare X 3/4" Flare Panel Mount Double Containment Nut
3/4" Flare X 1" Flare Panel Mount Double Containment Nut
DQPURDCPM1216
3/4" Flare X 1" Flare Panel Mount Double Containment Nut
3/4" Female Flare x 1" Male Flare PFA Flame Increaser
DQPURFI1216
3/4" Female Flare x 1" Male Flare PFA Flame Increaser
3/4" Female X 1/2" PFA Male Flare Reducer
DQPURFR1208
3/4" Female X 1/2" PFA Male Flare Reducer
Flaring Tool for 1/2" Tubing
DQPURFT08
Flaring Tool for 1/2" Tubing
Flaring Tool for 3/4" Tubing
DQPURFT12
Flaring Tool for 3/4" Tubing
1/4" Flare X 1/4" NPT PVDF Male Connector
DQPURMC0404
1/4" Flare X 1/4" NPT PVDF Male Connector
3/8" Flare X 1/4" NPT PVDF Male Connector
DQPURMC0604
3/8" Flare X 1/4" NPT PVDF Male Connector
1/2" Flare X 1/4" NPT PVDF Male Connector
DQPURMC0804
1/2" Flare X 1/4" NPT PVDF Male Connector
1/2" Female Flare X 1/2" Male Flare PFA Sweep Elbow Coupler
DQPURSE0808
1/2" Female Flare X 1/2" Male Flare PFA Sweep Elbow Coupler
3/4" Female Flare X 3/4" Male Flare PFA Sweep Elbow Coupler
DQPURSE1212
3/4" Female Flare X 3/4" Male Flare PFA Sweep Elbow Coupler
Polyethylene Shipping Plug with EPDM Seal
DQPURSP
Polyethylene Shipping Plug with EPDM Seal
Polyethylene Shipping Plug with FKM (Viton) O-Ring
DQPURSP202
Polyethylene Shipping Plug with FKM (Viton) O-Ring
O-Rings and Seals
FKM (Viton) O-Ring Kit for DrumQuik PUR Coupler
DQPURCPSEALFKM
FKM (Viton) O-Ring Kit for DrumQuik PUR Coupler
FFKM (Simriz) O-Ring Kit for DrumQuik PUR Coupler
DQPURCPSEALSMZ
FFKM (Simriz) O-Ring Kit for DrumQuik PUR Coupler
FEP Encapsulated Silicone Bung Seal for Drum Insert
DQPURDISEALFEP
FEP Encapsulated Silicone Bung Seal for Drum Insert
POE Coupling Insert Seal
DQPURDISEALPOE
POE Coupling Insert Seal
Other
3/4" Flare Coupler with FKM (Viton) O-Ring and (PEEK) Spring
DQPUR120112
3/4" Flare Coupler with FKM (Viton) O-Ring and (PEEK) Spring
3/4" Flare Coupler with FFKM (Simriz) O-Ring and (PEEK) Spring
DQPUR120112203
3/4" Flare Coupler with FFKM (Simriz) O-Ring and (PEEK) Spring
3/4" Flare Coupler with FKM (Viton) O-Ring and Polyphenylene Sulfide Spring
DQPUR120112208
3/4" Flare Coupler with FKM (Viton) O-Ring and Polyphenylene Sulfide Spring
3/4" Flare Coupler with FFKM (Simriz) O-Ring and Polyphenylene Sulfide Spring
DQPUR120112209
3/4" Flare Coupler with FFKM (Simriz) O-Ring and Polyphenylene Sulfide Spring
3/4 Flare Coupler with FKM (Viton) O-Ring and PTFE Encapsulated 316 Stainless Steel Spring
DQPUR120112210
3/4 Flare Coupler with FKM (Viton) O-Ring and PTFE Encapsulated 316 Stainless Steel Spring
3/4 Flare Coupler with FFKM (Simriz) O-Ring, FKM Vent Seal, and PTFE Encapsulated 316 Stainless Steel Spring
DQPUR120112211
3/4 Flare Coupler with FFKM (Simriz) O-Ring, FKM Vent Seal, and PTFE Encapsulated 316 Stainless Steel Spring
Sample Kits
Sample Kit with 1 DQPUR120112 (FKM (Viton) and PEEK ) Coupler and 1 Assembled Dip-tube (DQPUR2BUT0985202)
DQPURSAMP202
Sample Kit with 1 DQPUR120112 (FKM (Viton) and PEEK ) Coupler and 1 Assembled Dip-tube (DQPUR2BUT0985202)
Sample Kit with 1 DQPUR120112 (PPS and Simriz Spring) Coupler and 1 Assembled Dip-tube (DQPUR2BUT0985202)
DQPURSAMP209
Sample Kit with 1 DQPUR120112 (PPS and Simriz Spring) Coupler and 1 Assembled Dip-tube (DQPUR2BUT0985202)
