AseptiQuik/無菌連接器 AseptiQuik DC連接器
AseptiQuik DC連接器
AseptiQuik DC Connector
AseptiQuik DC連接器是第一個集全功能于一身的一次性連接器，同時提供無菌連接和無菌斷開。制藥商可以選用AseptiQuik DC連接器，即使是在非無菌環境中， 也能快速和輕易地進行無菌連接。 AseptiQuik DC直觀的“咔嗒-下拉-旋轉”的設計，使用戶能夠輕松地傳輸流體，減低操作失誤。 傳輸完成后，一個簡單的步驟就可以斷開連接，通過防止外部生物體進入流體通道，流體得以保持無菌。 連接器堅固的設計并配有自動截止閥，不需要使用卡箍、夾具或焊接機， 也能確保可靠的連接。AseptiQuik DC Connector is the first all-in-one single-use connection technology to offer both a sterile connection and a sterile disconnection. With the new AseptiQuik DC connector, manufacturers can make quick and easy sterile connections, even in non-sterile environments. AseptiQuik DC’s intuitive CLICK-PULL-TWIST design enables users to transfer media easily with less risk of operator error. After transfer is complete, a simple one-step disconnection maintains media sterility by preventing external organisms from entering into the media flow path. The connector’s robust design and automatic shutoff valves provide reliable performance without the need for clamps, fixtures or tube welders.
功能與效益
CLICK-PULL-TWIST Design
Intuitive three-step connection process reduces risk of operator error
Simple One-Step Disconnection
Maintains media sterility
Membrane Pull Tabs
Ensure simultaneous and secure removal of both membranes
Automatic Shutoff Valves
Eliminate the need for pinch clamps or tube welders
Robust Construction
Integrated lock ring and innovative seal technology ensure reliable performance
Market Availability
Open access through multiple supply chain partners
產品規格
Pressure: Up to 60 psi, 4.4 bar
Temperature: 39°F to 104°F (4°C to 40°C)
Typical Flow Rate: Cv~ .077 to 1.9
Materials:
Connector:
Polycarbonate (white), USP Class VI, ADCF
Lock Ring and Thumblatch: Polycarbonate (blue), USP Class VI, ADCF
Pull Tabs:
Polycarbonate (blue, standard version), USP Class VI, ADCF
Caps:
Polypropylene (clear), USP Class VI, ADCF
Seals:
Silicone (clear), platinum-cured, USP Class VI, ADCF
Membrane:
Polyethylene (standard version)
Springs: 316 Stainless steel
Termination Size:
1/2" hose barb (12.7mm) 3/8" hose barb (9.5mm) and 1/4" hose bard (6.4mm)
Sterilization:
Gamma:
Up to 50kGy irradiation
AseptiQuik系列連接器
CPC AseptiQuik系列產品便是為幫助制藥商快速輕松地傳輸生物介質而研發，即使在非無菌環境中（在生物制造工藝中）轉移培養基也始終可靠確保無菌。AseptiQuik系列不分公母接頭，在有菌環境中也可以實現快速、方便的無菌連接，降低批量生產中的污染風險。接頭的耐用設計可以保證可靠的性能，且無需使用卡夫、夾具和焊管機，保證可靠性能和可重復性。AseptiQuik可以滿足從1/8英寸到1英寸的各種流量需求。為了進一步簡化生物制藥，CPC在此前傳統方案之上創新了連接技術。作為CPC AseptiQuik G 系列不分公母無菌連接器的最新成員，AseptiQuik G DC 在無菌連接的基礎上增加了無菌斷開功能。AseptiQuik G DC 無需任何輔助設備進行操作，如此制造商能夠顯著提高操作效率，簡單高效。直觀的“翻轉-咔噠-拉拔”三步驟連接過程確保用戶使用方便，降低因操作失誤所導致的風險。
Colder AseptiQuik DC Flow
WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of Colder products in their own application conditions.
Cv值
Single Shut-Off Cv~0.77 max (1/4" hose barb)
Cv~1.1 max (3/8" hose barb)
Cv~1.2 max (1/2" hose barb)
Legend
Legend
產品
Bodies
 |
|
|
AQCDC17004
1/4 Hose Barb AseptiQuik DC Body |
AQCDC17006
3/8 Hose Barb AseptiQuik DC Body
|
AQCDC17008
1/2 Hose Barb AseptiQuik DC Body |
Inserts
 |
|
|
AQCDC22004
1/4 Hose Barb AseptiQuik DC Insert
|
AQCDC22006
3/8 Hose Barb AseptiQuik DC Insert
|
AQCDC22008
1/2 Hose Barb AseptiQuik DC Insert |
1/4 Hose Barb AseptiQuik DC Body
AQCDC17004
1/4 Hose Barb AseptiQuik DC Body
3/8 Hose Barb AseptiQuik DC Body
AQCDC17006
3/8 Hose Barb AseptiQuik DC Body

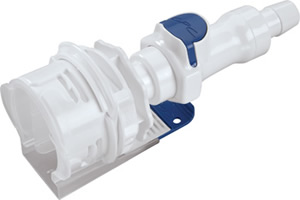

1/2 Hose Barb AseptiQuik DC Body
AQCDC17008
1/2 Hose Barb AseptiQuik DC Body
Inserts
1/4 Hose Barb AseptiQuik DC Insert
AQCDC22004
1/4 Hose Barb AseptiQuik DC Insert
3/8 Hose Barb AseptiQuik DC Insert
AQCDC22006
3/8 Hose Barb AseptiQuik DC Insert

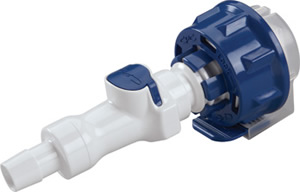

1/2 Hose Barb AseptiQuik DC Insert
AQCDC22008
1/2 Hose Barb AseptiQuik DC Insert |
